Compact design
The DTF InkOne DS1 Printer with a printing width of 20 cm is the smallest printer with all professional functions, designed for reduced workspaces.
Easy maintenance
It is very easy to use and has special systems to simplify maintenance and extend the lifespan of the printhead and all its internal components.
White Ink Recirculation
The ink recirculation system, the white ink agitator, and the additional filtration in the dampers prevent sediment formation and blockages.

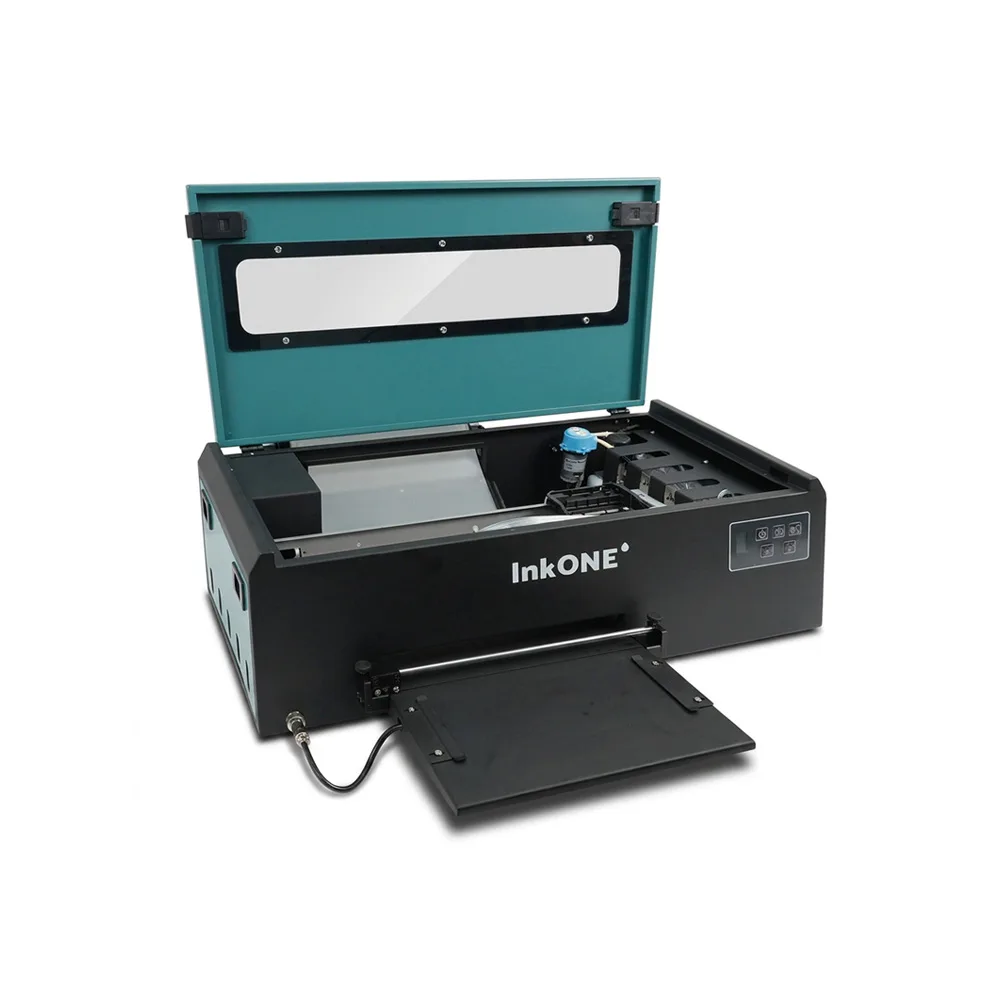

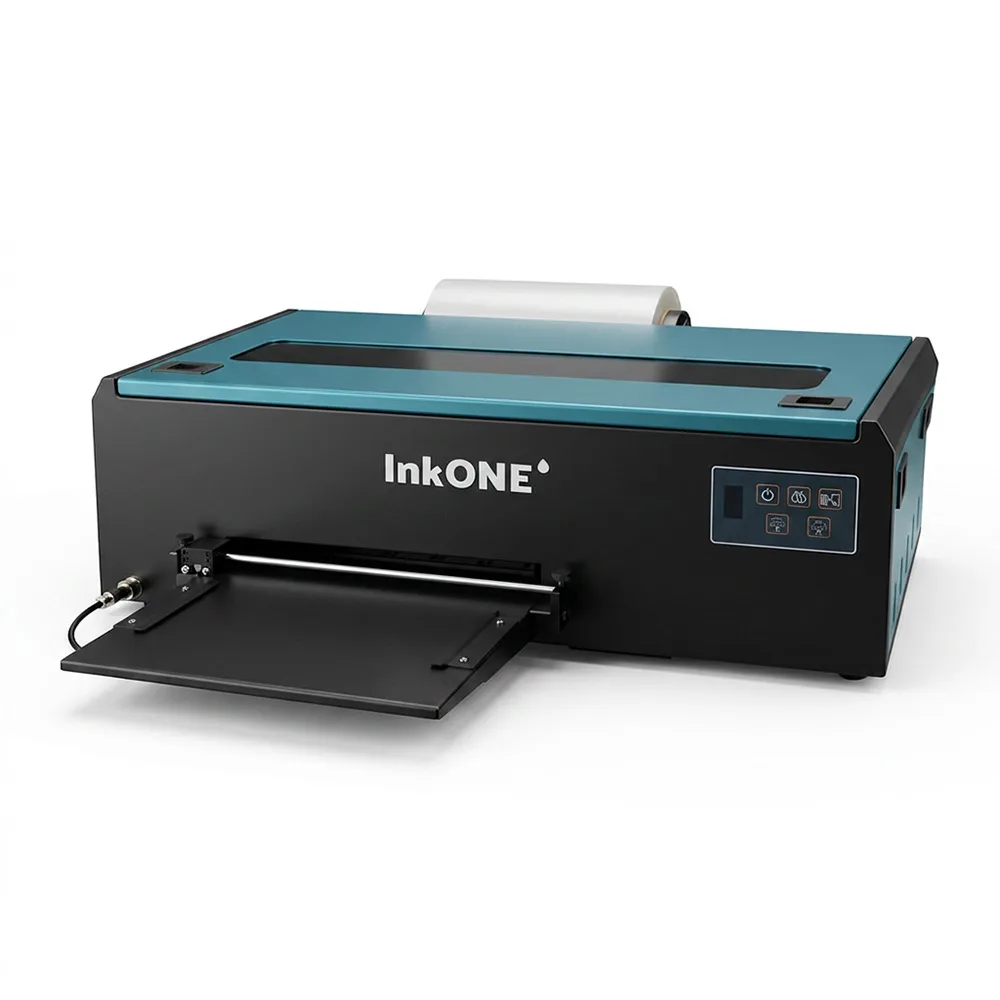

DTF Printer InkOne DS1
The DTF Printer InkOne DS1 (20 cm) is a powerful, compact, and versatile solution designed for textile customization using the DTF technique. With a high-quality Epson printhead and an advanced ink recirculation system, this printer ensures long-lasting performance, avoiding sediment and ink clogs. It is perfect for entrepreneurs or small businesses looking for an easy-to-use machine with excellent value for money. Additionally, its compatibility with ovens and automatic applicators allows for an efficient workflow.

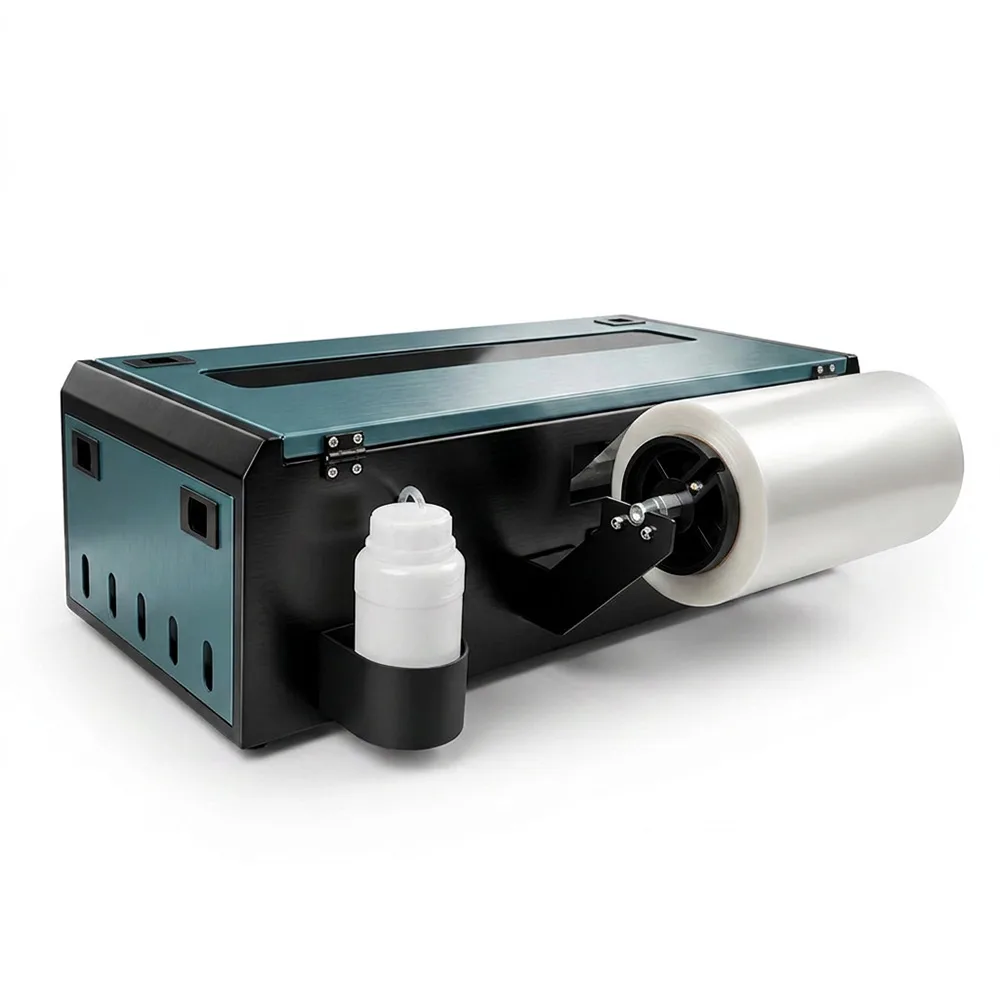

- Prints on films in sheet and roll format with a maximum width of up to 20 cm (A4 size).

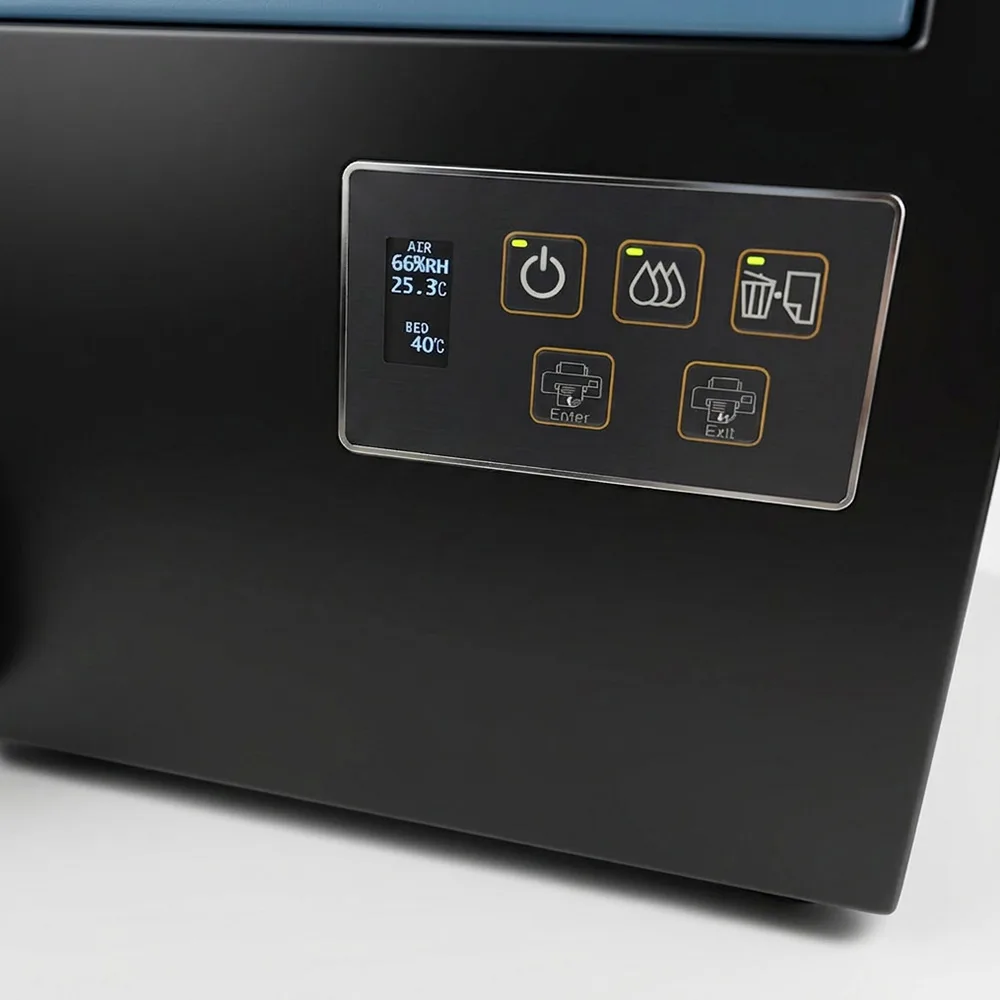

- Its integrated digital screen allows you to monitor the tray temperature as well as the ambient temperature and humidity.
- The Epson L805 printhead can print with high definition and vibrant colors at a print speed of up to 1440 dpi / 3.6 ML/h (linear meters per hour).

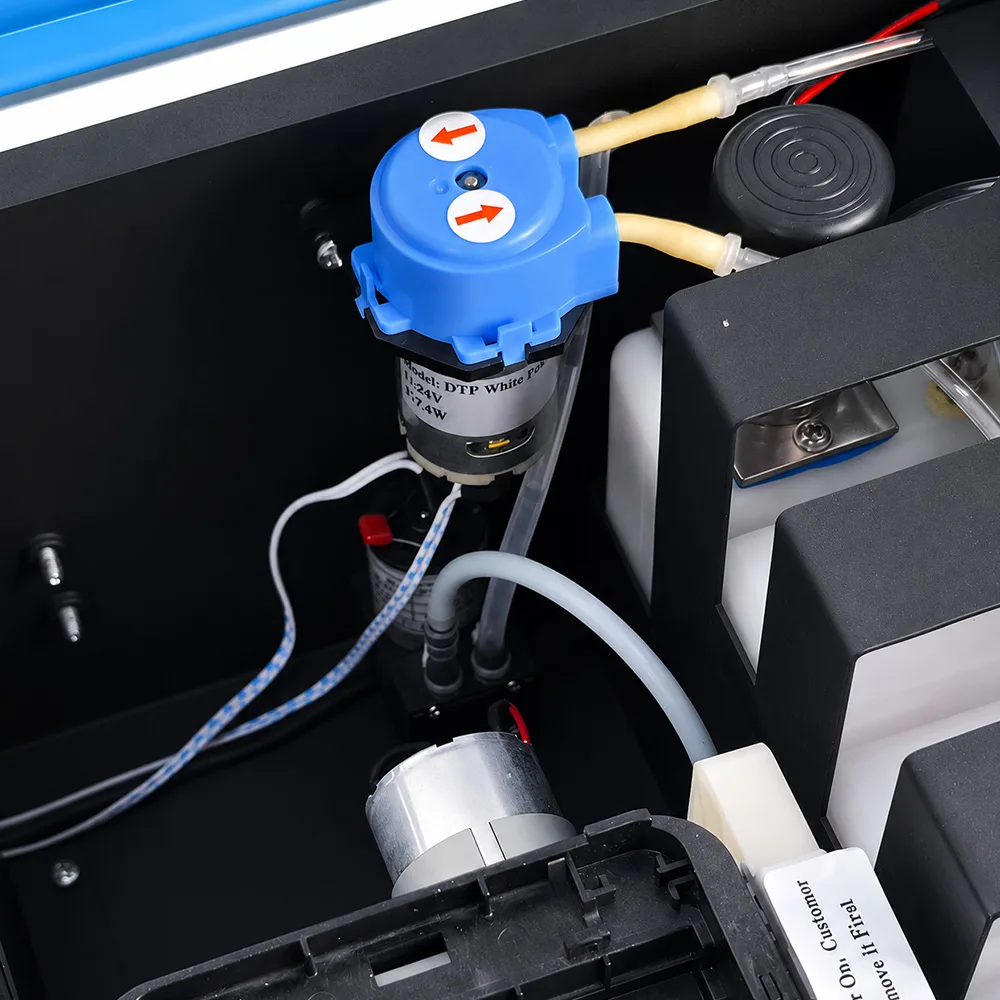

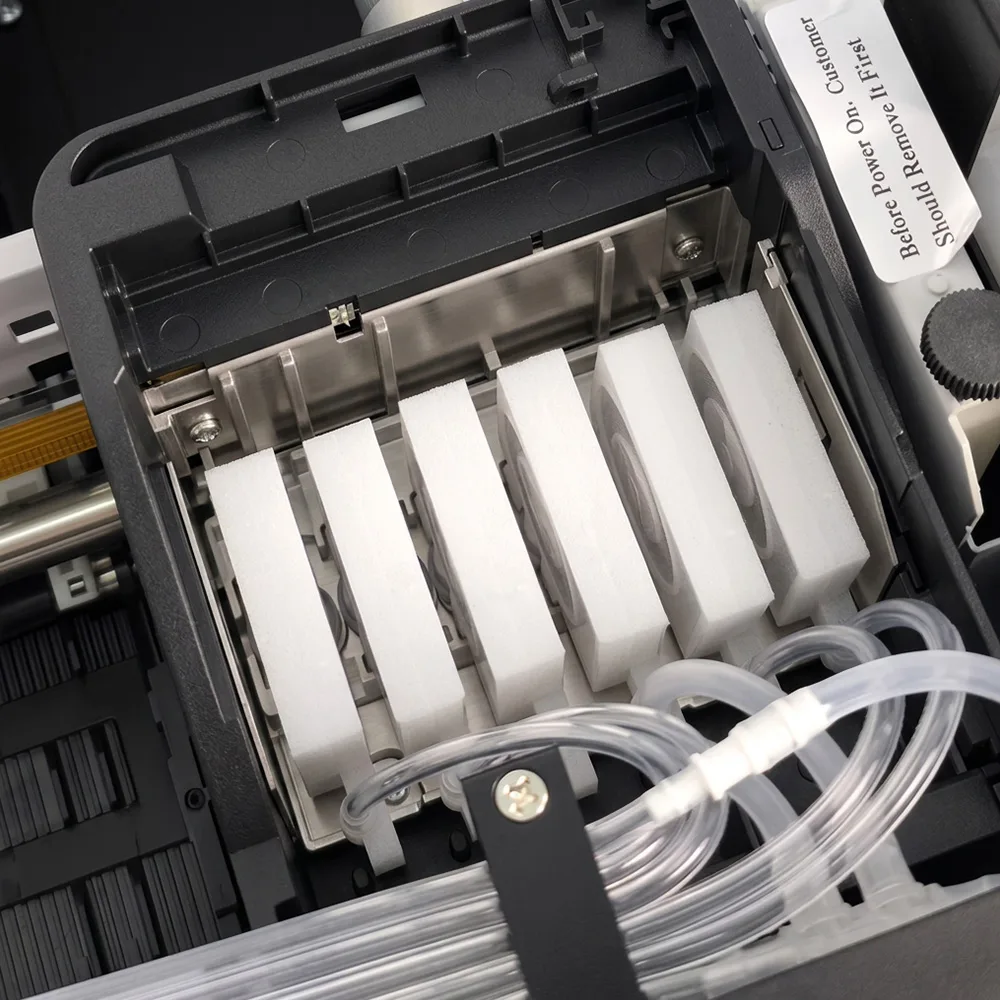

- The ink recirculation system, the white ink agitator, and the additional filtration in the dampers protect the printheads, avoiding sediment formation and clogs.

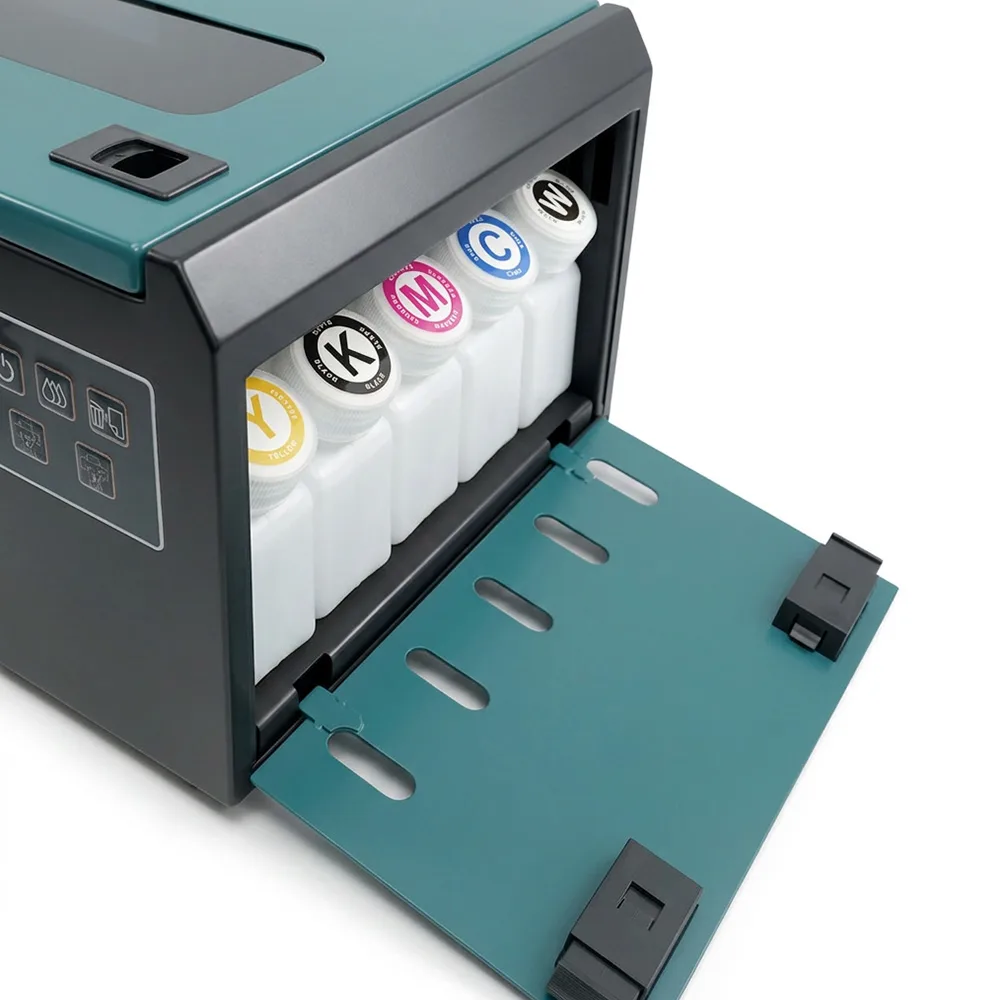

- It has refillable ink tanks to simplify ink management.
- The flat output tray is at the same height as the film exit, preventing it from touching the printhead. Additionally, it is heated to improve ink fixation, avoiding unwanted dispersion or mixing.

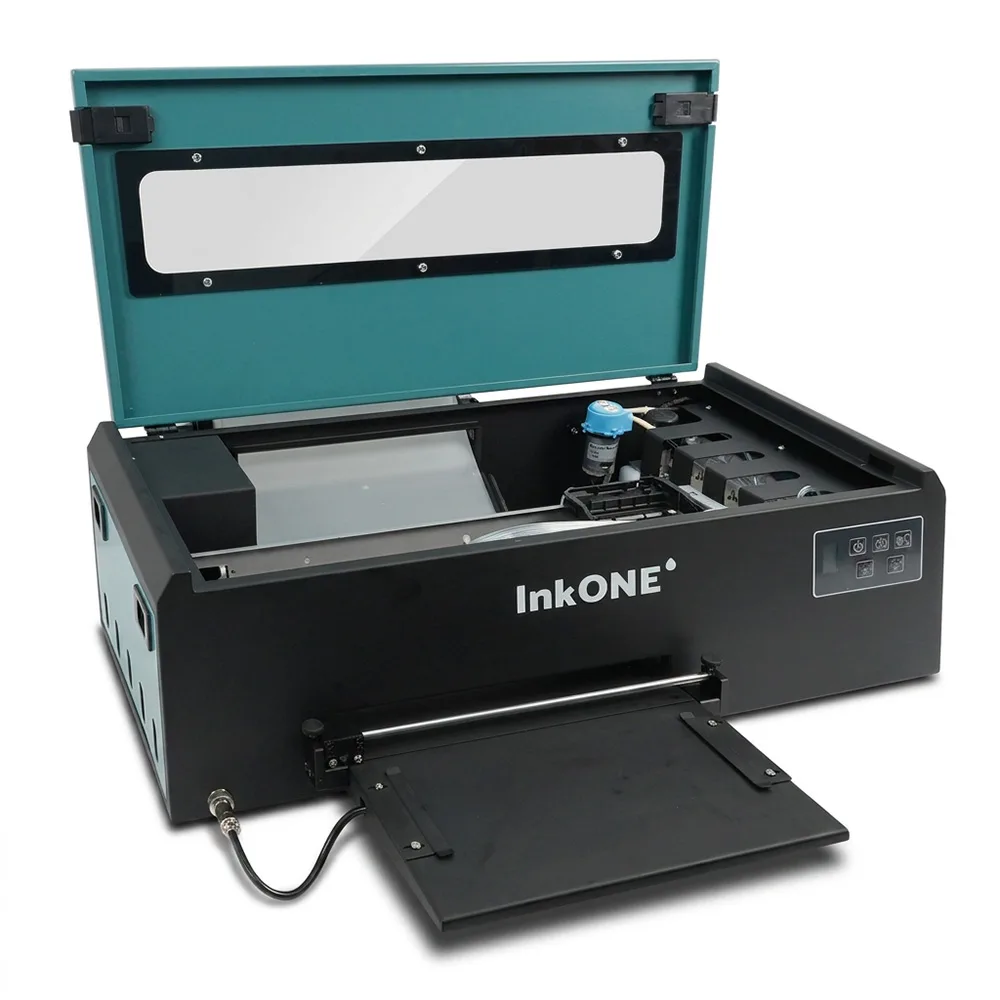

- It has a top cover that provides easy access to the interior for easier repair and maintenance.
- It incorporates a manual cutter that ensures a straight edge from start to finish, keeping the film organized and aligned.
- It has a window in the top cover and internal lighting to check print quality in real time.
INTRODUCTION
InkOne DS1
InkOne DTF Printer Series
Frequently Asked Questions (FAQ)
The DTF Printer InkOne DS1 stands out for its compact design and its ability to print on both A4 sheets and film rolls up to 21 cm wide, making it a versatile option for various applications. It is designed to be very easy to use and requires minimal maintenance. It features an Epson L805 printhead, enabling high-definition printing with vibrant colors at a speed of up to 1440 dpi / 3.6 LM/h (linear meters per hour). Additionally, it incorporates a heated base that improves ink adhesion, preventing mixing during the printing process. It also has a digital display that shows temperature and humidity, making it easier to control the printing process.
The ink recirculation system of the InkOne DS1 DTF printer is a key feature that prevents white ink sedimentation, a common issue in DTF printers. By keeping the ink in constant motion, it reduces the risk of clogs in the printhead, extending the lifespan of the equipment and ensuring smooth, uninterrupted printing.
The compatibility with automatic ovens allows the film roll coming out of the printer to go through the polyamide powder application process and then be cured in the drying oven without stopping production. In this way, the blank film roll passes through both machines continuously, resulting in transfers ready to be pressed onto garments. This enables operators to speed up the production process and increases efficiency.
The maintenance of the DTF InkOne DS1 Printer is simple thanks to its optimized design. It is important to regularly activate the ink recirculation system to avoid sedimentation and protect the printhead. In addition, periodic cleaning of key components, such as filters and dampers, is recommended to ensure long-lasting performance. Following the guidelines for temperature and humidity is essential to keep the printer in optimal working condition.
