Simple and Efficient
The Mug Press InkOne M1 is a compact, efficient and very easy-to-use machine for personalizing ceramic mugs using the sublimation technique.

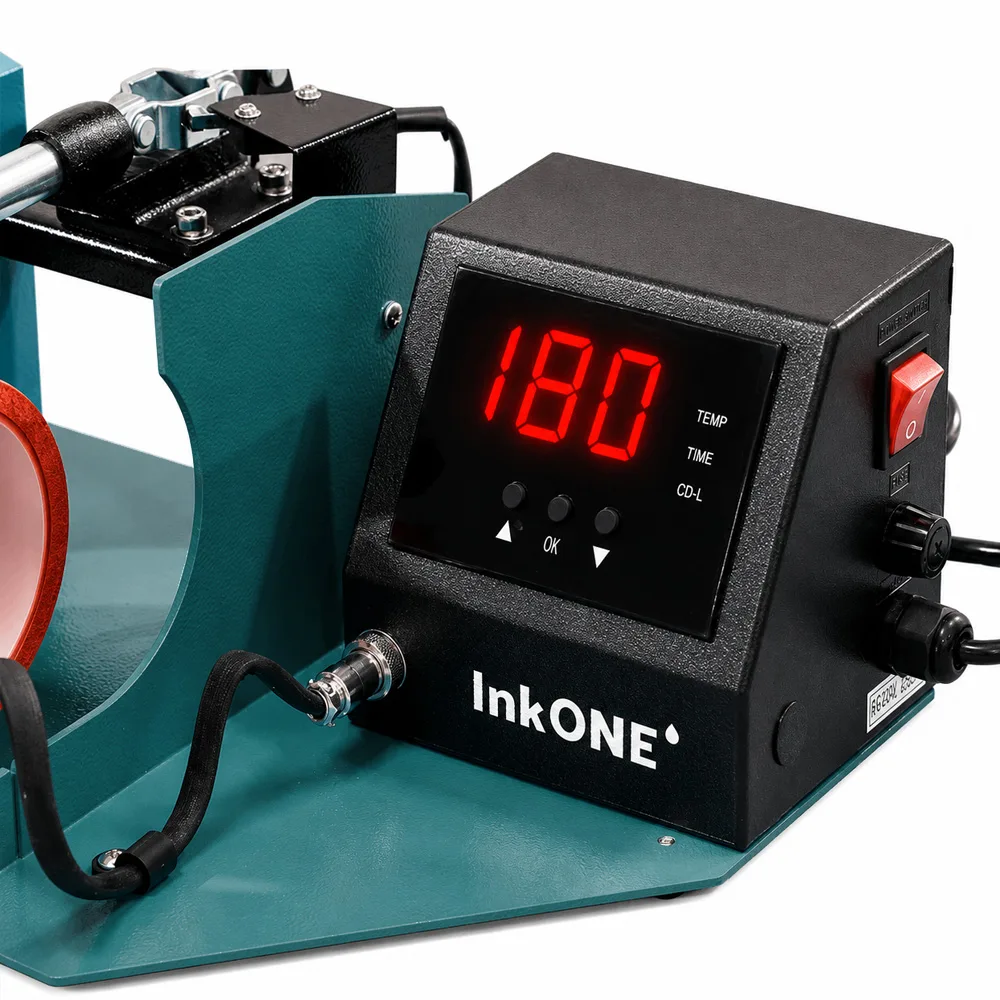

Digital Control
The digital control panel offers an intuitive interface that makes it easy to use, allowing you to precisely control both the time and temperature required for the sublimation process.
Constant and uniform pressure
The pressure is exerted by a force multiplier arm, which allows constant pressure to be applied that is evenly distributed over the cup.

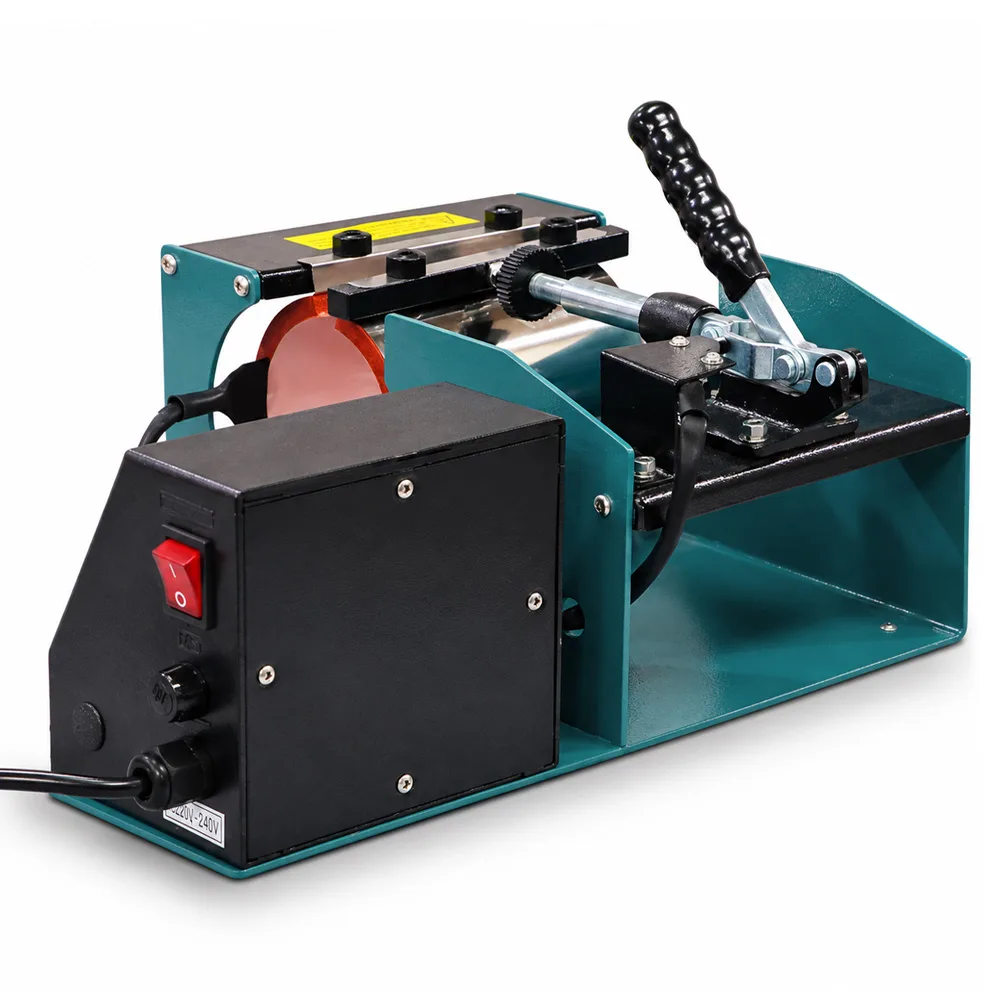

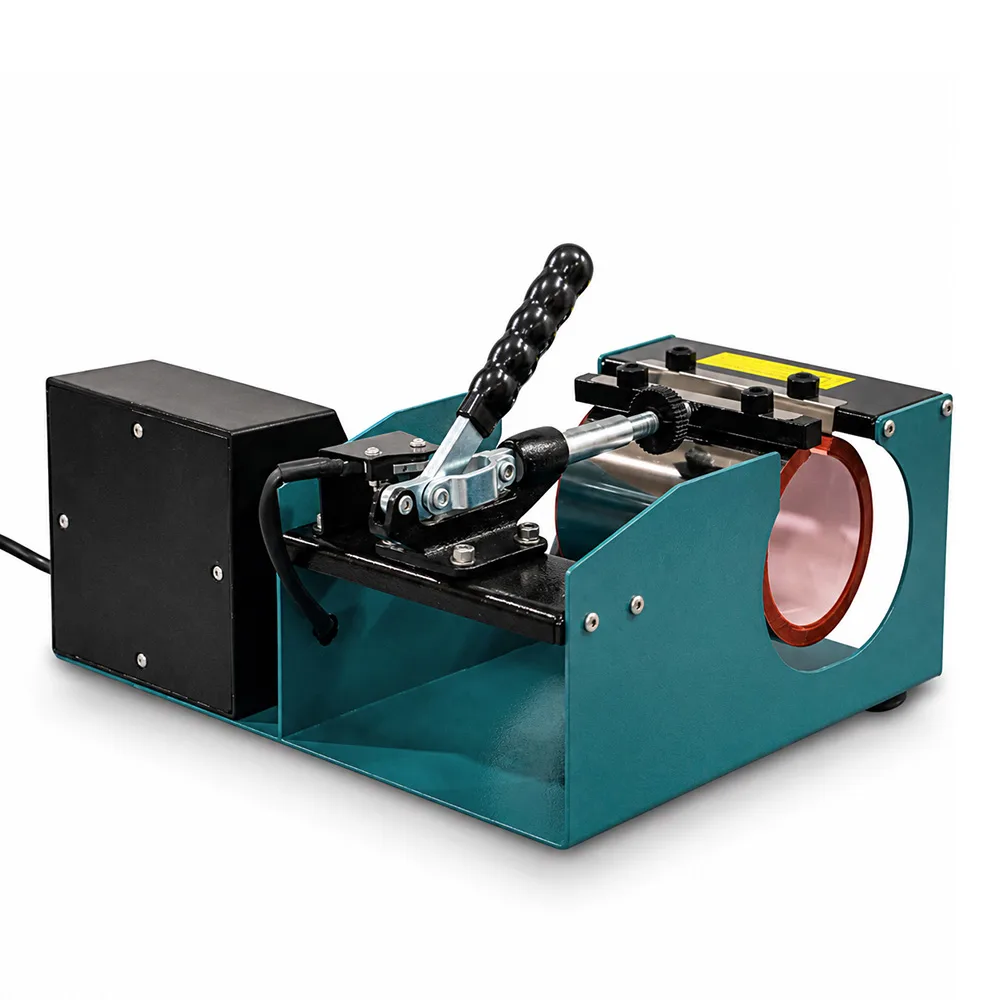

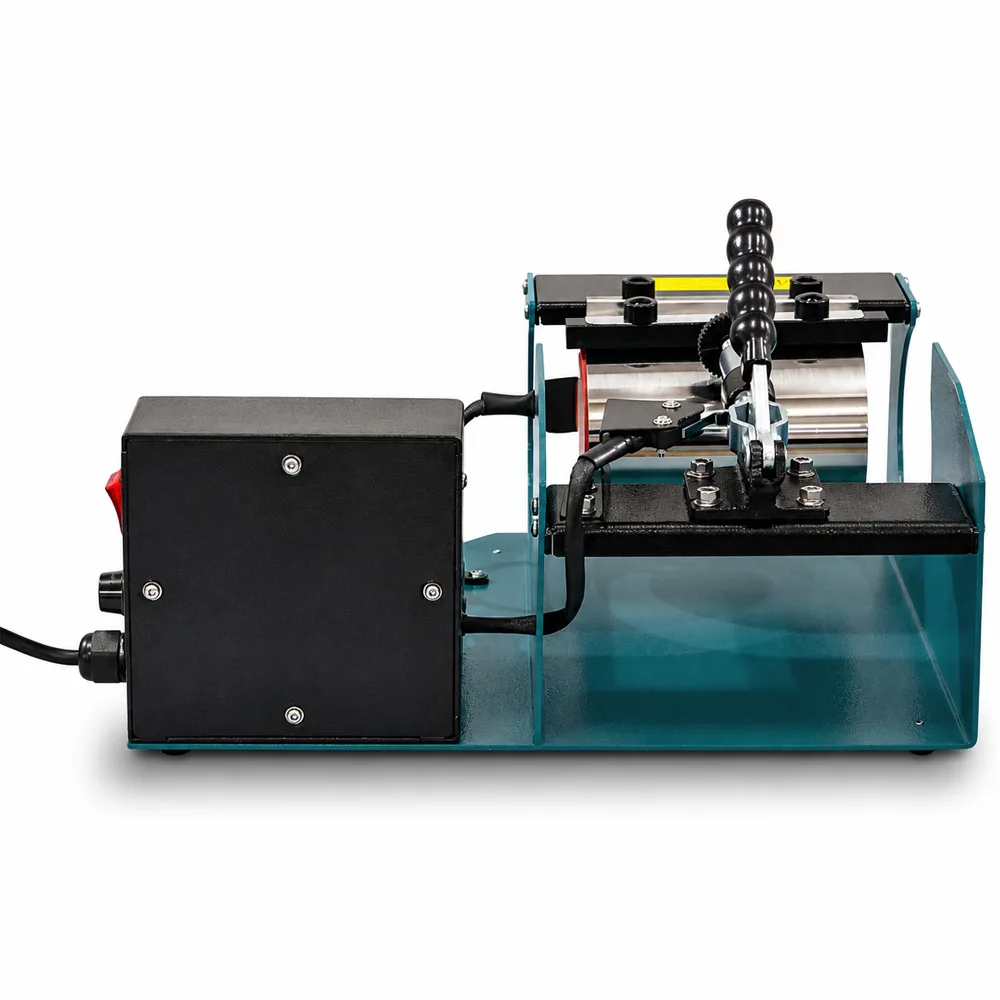

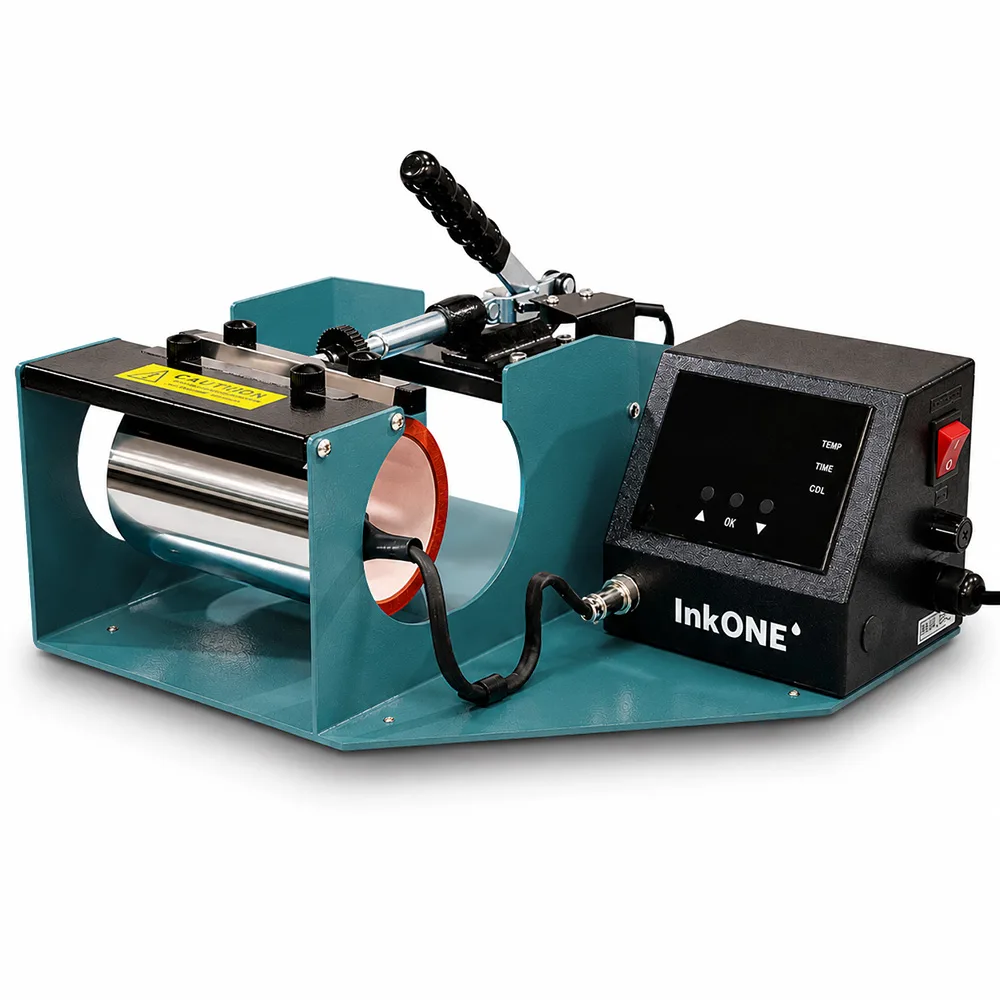

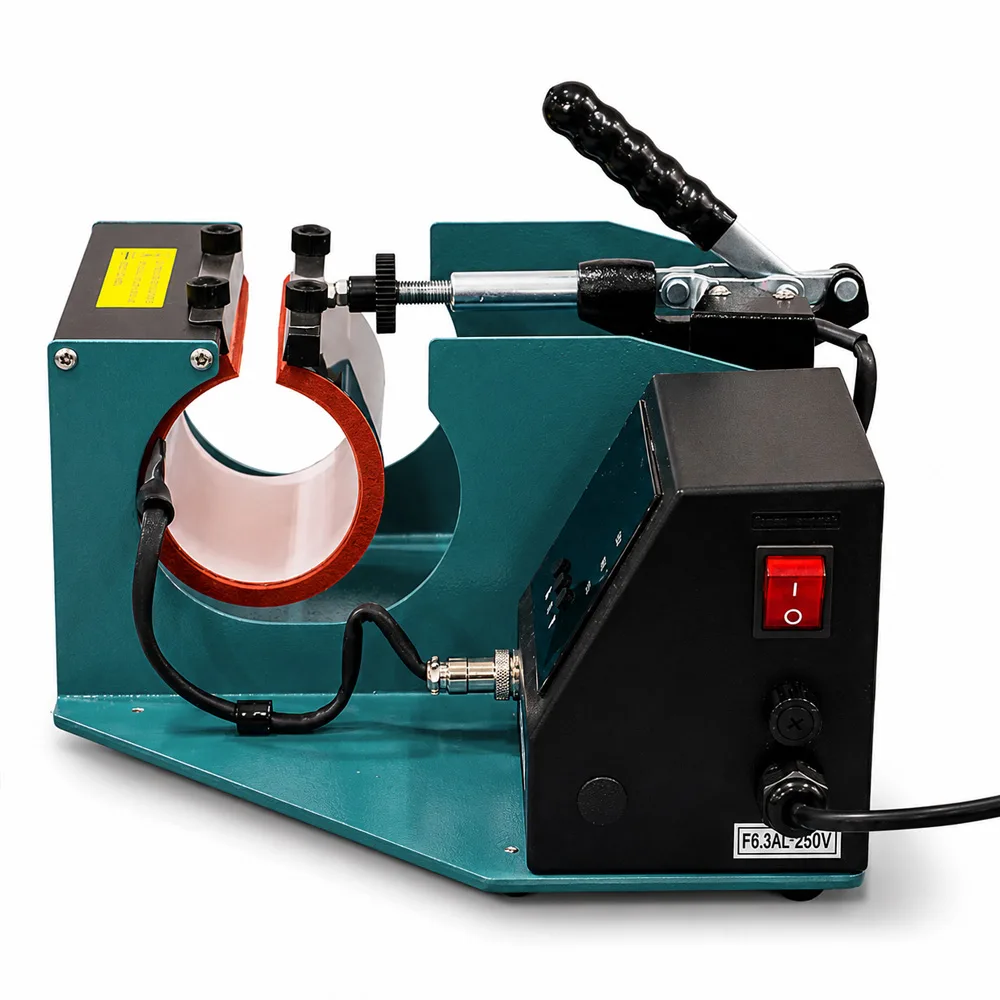

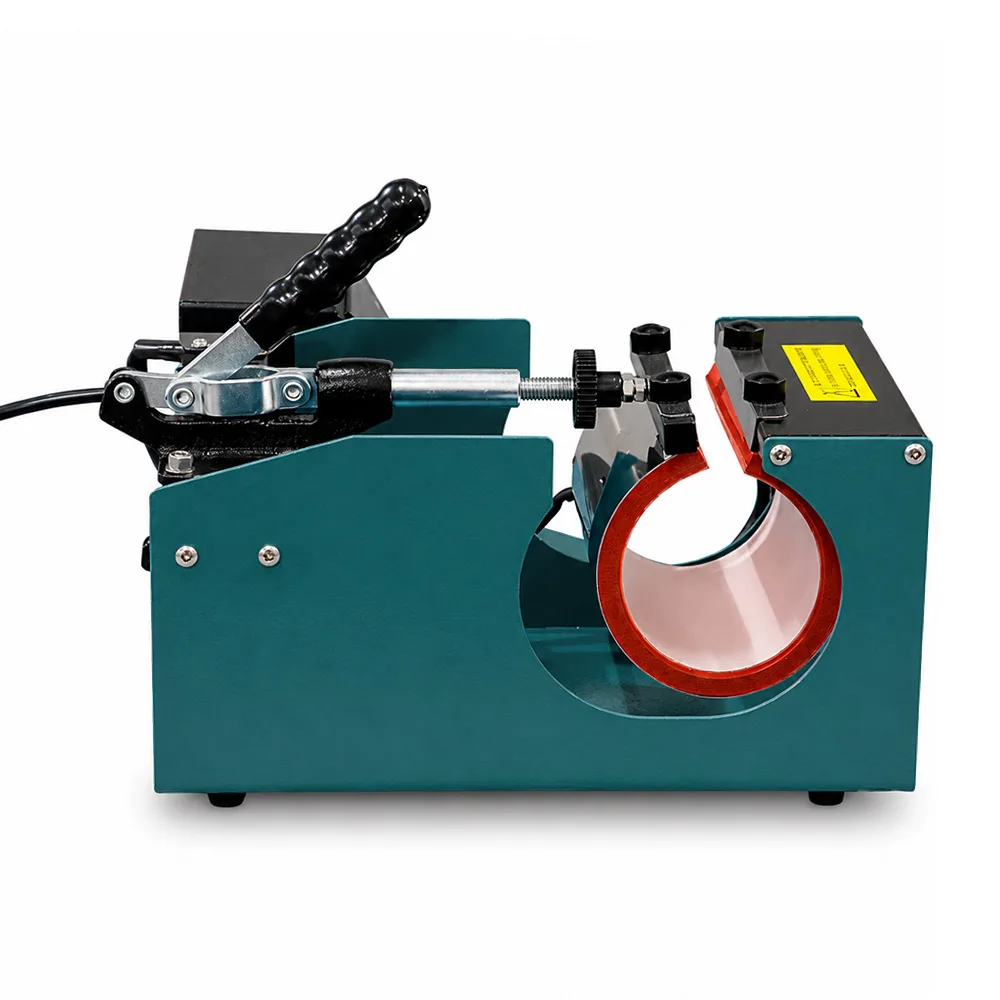

Mug Press InkOne M1
- Easy and Fast: It is easy to operate and can be set up in seconds, while allowing you to obtain high-quality results when sublimating.
- Compact Design: It is specially designed for use in a horizontal position, which makes it compact and suitable for small spaces.

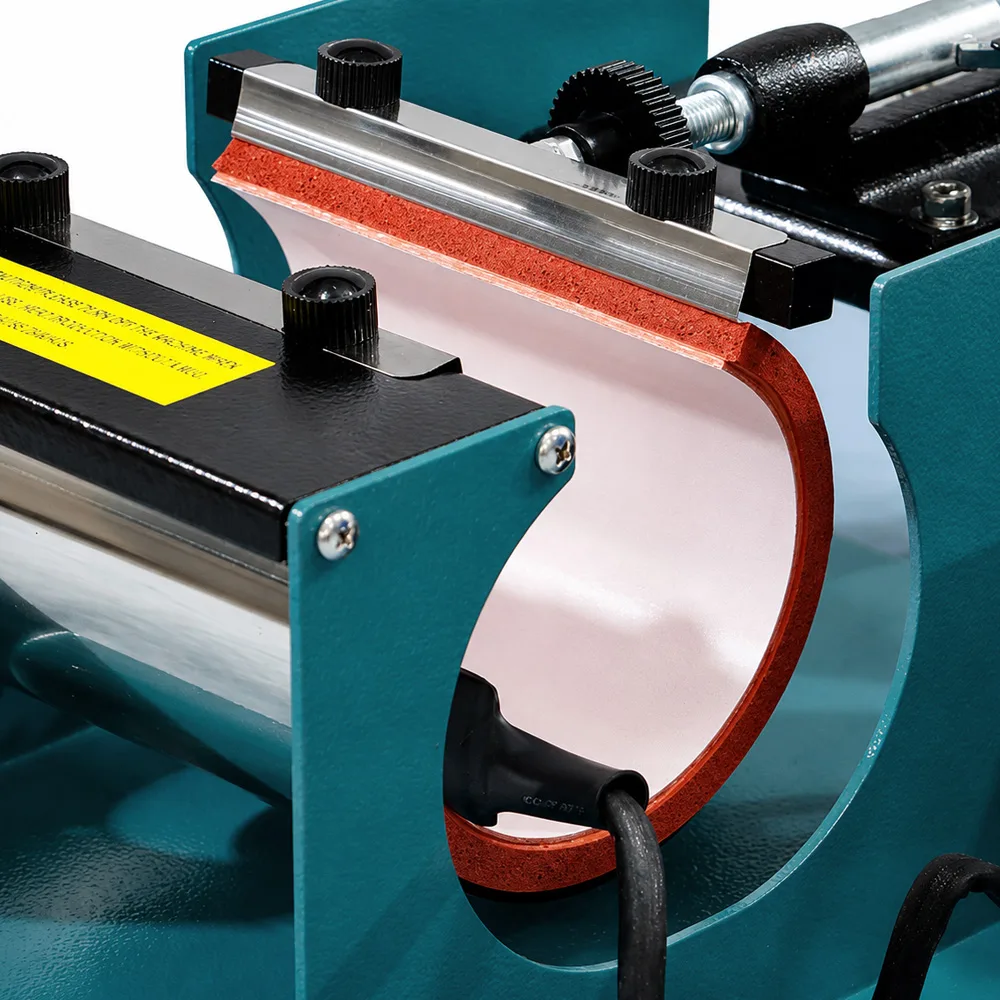

- Simple maintenance: The resistance is a part that wears out with use. The replacement process is very simple: place the resistance on the iron and plug in the connector, and it is ready to continue working. No special tools required.
- Suitable for various types of cups, bottles and glasses. It is compatible with the resistors:
– 11-15 ounce cylindrical resistance
– 6-10 ounce cylindrical resistance (Not included)
– 12 oz and 17 oz conical resistors (Not included) - Guarantee: 3 years warranty.
Technical specifications | InkOne M1 |
|---|---|
Voltage (V) | 110 / 220 V |
Opening | Manual |
Pressure adjustment | Manual |
Power (W) | 300 W |
Temperature (ºC) | max 225 º |
Weight (Kg) | 5 kg |
Machine dimension | 31 x 29 x 15 cm |
Packing size | 45 x 40 x 35 cm |
Advantages of the Mug Press InkOne M1
Mug press | InkOne M1 |
|---|---|
Easy to use | Simple operation and intuitive digital control for time and temperature |
Compact | Small and handy, ideal for small spaces |
Little maintenance | Quick and simple resistance change |
Multifunctional | Suitable for various types of cups, bottles and glasses (compatible heating elements sold separately) |
Frequent questions
The Mug Press InkOne M1 is ideal due to its compact and efficient design, its intuitive digital control panel and its ability to apply uniform pressure on the mug, guaranteeing high-quality results in the sublimation process.
The process of replacing the resistance is very simple and does not require special tools, it is simply placed in position and plugged in. A resistance has a durability of about 600 cups, but this number depends on the frequency of use and wear of it. The ideal is to replace it when the iron fails to reach the required temperature, when the temperature is unstable or when the sublimated images have gradients or similar defects.
The InkOne M1 Mug Iron is compatible with various sizes of cylindrical and conical mugs. The iron includes a cylindrical heating element for 11 to 15 ounce mugs. In addition, compatible coils can be purchased separately, such as the cylindrical coil for 6 to 10 ounce cups, and the conical coils for 12 ounces and 17 ounces.
The InkOne M1 Mug Iron is designed to perform heat transfer on all types of containers. It can be used to personalize cups, bottles, thermoses and glasses made of different materials, such as ceramic, stainless steel, aluminum, glass, plastic, etc.
